Wooden floor band sawn effect machine
The cross cutter that produce a band sawn effect on your flooring wooden planks.
.jpg "Wooden floor band sawn effect machine")
.jpg "Wooden floor band sawn effect machine")
.jpg "Wooden floor band sawn effect machine")
.jpg "Wooden floor band sawn effect machine")
.jpg "Wooden floor band sawn effect machine")
.jpg "Wooden floor band sawn effect machine")
.jpg "Wooden floor band sawn effect machine")
The machine we present on that page is dedicated to band sawn effect on timber planks and wooden flooring. You can also make a cross cutting effect on solid timber profiles, and the final effect will be always incredibly natural and random with no ripetitives marks.

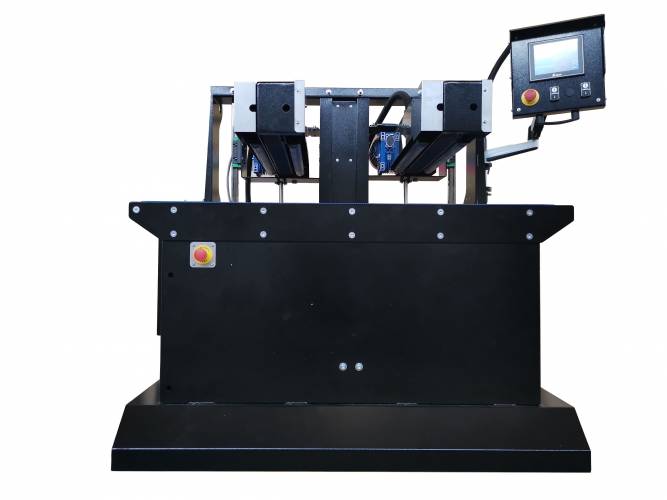

The version you can see on that presentation is the 600mm wide capability (we offer also the standard version with 400mm wide capability) with double abrasive belt. You can also have under request the single head or the triple head timber profiles cross cutting machine.
The distressing effect of our Band sawner unit is created by a completly adjustable serie of pistons, as you can see on the video here below.
The touch screen controll allows each customer to find its own customized cross cut effect with completly random band sawn design or a ripetitive effect.
TOUCH SCREEN, ABRASIVE BELT, AIR CONNECTION FOR PISTONS
SOME BAND SAWN EFFECT MADE BY OUR CROSS CUTTING MACHINE
It is very important to not exagerate WITH PRESSURE of abrasive belt action as they could cut or damage. They aren't like rotating steel or tynex brushes on wire brushing machines that more pressure means deeper action effect.
To have deeper effect it is necessary to set up advance of timber very slow and make the belt turn fast, and equilibrate the tilting of the sign with the manual adjustment of the abrasive tilting heads.
Here below you can find 2 videos that will explain exactly how to set up the machine and another to shows the machine at work.
PRESENTATION OF THE NEW TEXTURING PAOLONI MACHINE
MACHINE TO MAKE A FLOOR BAND SAWN EFFECT: HOW DOES IT WORK?
Data Sheet
Size and weight of the machine
- Length: 150 cm
- Width: 124 cm
- Height: 164 cm
- Total weight: 517 kg
Workable sizes
- Thickness min. 5mm - max. 135 mm (under request up to 300 mm)
- Min. Width 20 - max. 600 mm (under request 400 mm AVAILBLE)
- Min. Length 300 - max. NO LIMIT
Three-phase power supply:
- Nominal voltage: 380 V (50 Hz) (adaptable to any international standard)
- Total power 2,95 kW
Conveyor belt motor
- 380 V (50 Hz) power supply (adaptable to any international standard)
- Power 0.37 kW
Brush motor with inverter
- 380 V (50 Hz) power supply (adaptable to any international standard)
- Power 1.3 kW (each working head)
- Adjustable speed: min. 20 RPM - max. 160 RPM
Production speed
- Meters / minute: 1 - 9
Air compressor supply
- adjust on 1-1,5 bar , never more than 2!
