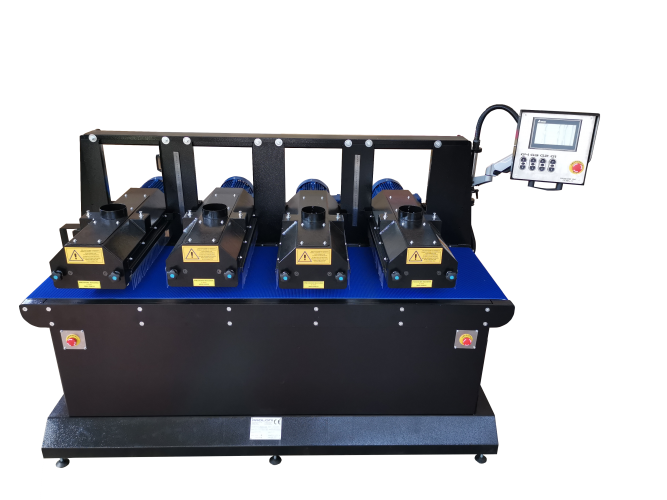

Rustica Four 600

The brushing machine for wood (boards and parquet) and lamellar and solid wood beams with four horizontal heads model "Rustica Four 600" is identical to the model visible on the page of the site accessible at this link: https://www.woodfloormachinery.com/en/beams-planks-matchboards-brush-machine, but it has 600mm wide brushes and consequently also a traction belt renforced capable of accommodating wider boards or more boards at the same time. This machine is therefore also suitable for brushing large wooden surfaces such as doors and solid wood furniture.

It is a machine designed to work wooden profiles that require deep brushing or rusticating industrial productions of wooden profiles with the maximum programmable infeed speed, and thanks to the possibility of raising the brushes up to a thickness of 30 cm vertically you can also brush wooden beams of huge dimensions.

In addition, the presence of 4 inverters allows you to control each brush from the modern touch screen in both spin direction and in rotation speed, to adjust its incisiveness according to the brush in use.
In fact, by using special abrasive paper drums, this brushing and rusticating professional machine can be used as a sanding machine after the application on wood and flooring of impregnating products or water-based paints.

NEW OPTIONAL TOUCH SCREEN (available for all Paoloni machine)

DIFFERENT BRUSHES COMBINATIONS TO MAKE DIFFERENT GRAINED AND DISTRESSED EFFECT ON WOOD

spazzola Rustica One

Spazzola in Acciaio a filo libero Hard

spazzola Rustica One

Spazzola-in-Tynex-grana-60

spazzola Rustica One

Spazzola in Tynex grana 120

spazzola Rustica One

Spazzola lamellare in carta abrasiva grana 320-240

spazzola Rustica One

Spazzola in Acciaio a Filo Cordino Medium

spazzola di cotone

Spazzola di cotone

spazzola scotch brite rosso

Spazzola Scotch Brite Rosso

SETTING PAOLONI WIRE BRUSHING MACHINE 600mm WIDTH CAPABILITY

HOW TO USE

HOW TO USE

HOW TO SET UP SHAFT TOOL CHANGING QUICKLY THE BRUSH AT WORK

PAOLONI MACHINE WIRE BRUSHED EFFECT ON SOFT FIR WOOD VENEER SURFACE DENIBBING

Technicals data

Machine weight and dimensions:

  • Lenght: 2690 mm
  • Width: 120 cm
  • Height: 125 cm
  • Total Weight: 1050 kg

Size of workable elements:

  • Tickness min. 5 mm - max. 135 mm (optional under request up to 300 mm)
  • Width min. 20 - max. 400 mm (optional under request up to 600 mm - 800 mm)
  • Lenght min. 300Mm – max No Limit

Brushes engine:

Three-phase power supply:

  • Nominal voltage: 380 V / 50 Hz (optional custom made for worldwide standards)
  • Total power: 15,5 kW

Adjustable speed brushes:

  • Adjustable speed: min. 25 RPM - max. 960 RPM (adjustable rotating direction)

Production speed:

  • 2-15 Mt/min

Electrical lifter with digital display
